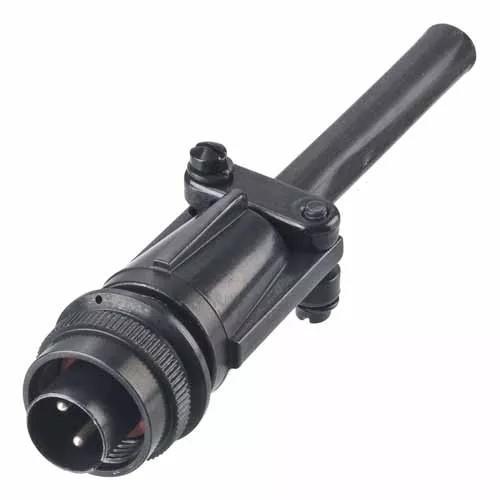

C90-3106F10SL-3P

3 Pos. Circular Straight Plug Conn. Plug contact

Circular Connector equivalent to MIL-DTL-5015 (MIL-C-5015)

Add to Favorites

Loading…   Check availability

1 similar products View products

Traceparts account required

Product Description

  • RoHS Compliant version of MIL-DTL-5015 (MIL-C-5015) Circular Connectors, sealed to IP67.
  • Plug shell, 3 x Male contacts for 16-22 AWG cable, supplied with rubber bushing C90-3420-4. Silver finish on contact area and solder termination.
  • For complete pin numbering or pin out information, see Component Specification C045XX.

Technical Details

Specification

Contact Gender:

Male/Plug

Connector Orientation:

Straight

Connection Type:

Cable (Solder)

Cable Conductor Size:

16-22 AWG

Mating Pin Size:

Ø1.6mm

Current Rating:

13A per contact

Operating Temperature:

-55°C to +125°C

Polarising Features:

Yes

Number of Signal Contacts:

3

Materials

Finish / Plating on Termination:

Silver

Finish / Plating on Contact Surface:

Silver

Base Material of Contact:

Copper Alloy

Housing Material:

Aluminium Alloy

Housing Colour:

Black

Packaging Style:

Single Pack

Dimensions

Individual Part Weight:

29.73g

Overall Dimensions (L x W x D) in mm:

58.72 x Ø22.04

Thread Size:

5/8-24UNEF

Frequently Asked Questions Ask a Question

What is the recommended cable type for this connector?

The recommended cable size for connectors in the C90 range is 16-22AWG. We do not have any specific recommendations on cable type – this range is based on the same physical dimensions and specifications as MIL-DTL-5015, so any cable compatible with this standard will work for these connectors.

Was this answer useful?

What is the screw size for the locking joint at the end to secure the cable?

The dimensions on these connectors are designed to meet MIL-DTL-5015 (external link), so the rear screw gauge is to this specification. For the 10SL shell size, the rear thread is 5/8-24 UNEF, the same as the front thread.

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF Download

INSTRUCTION SHEETS

OTHER DOWNLOADS
