  • C90-3102R12S-3P - 2 Pos. Circular Panel Mount Conn. Plug contact

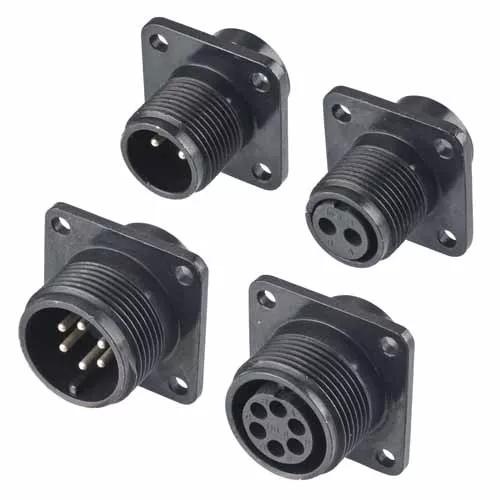

Representative image of product family.

C90-3102R12S-3P

2 Pos. Circular Panel Mount Conn. Plug contact

Circular Connector equivalent to MIL-DTL-5015 (MIL-C-5015)

  • Receptacle shell, 2 x Male contacts for 16-22AWG cable.
  • RoHS Compliant version of MIL-DTL-5015 (MIL-C-5015) Circular Connectors, sealed to IP67.

Active

Limited availability or made-to-order (check alternatives for popular products)

RoHS Compliant - 2011/65/EU

(Does not require exemption)

Product Stock

Distributor Name Location of Stock Qty
Mouser Electronics Inc Global 1 Buy Now

Product Information

Specification

+
Product Type: Circular Connector equivalent to MIL-DTL-5015 (MIL-C-5015)
Contact Gender: Male/Plug
Connector Orientation: Straight
Connection Type: Cable (Solder)
Mating Pin Size: Ø1.6mm
Current Rating: 13A
Operating Temperature: -55°C to +125°C

Materials

+
Finish/Plating on Termination: Silver
Finish/Plating on Contact Surface: Silver
Base Material of Contact: Copper Alloy
Housing Material: Aluminium Alloy
Housing Color: Black
Individual Part Weight: 15.84g
Packaging Style: Single Pack

Dimensions

+
Total Number of Contacts: 2
Body Length: 30.18mm
Polarising Features: Yes
Thread Size: 3/4-20UNEF
Body Size: 28.02mm
Conductor Size of compatible cable: 16-22AWG

Related Products

+

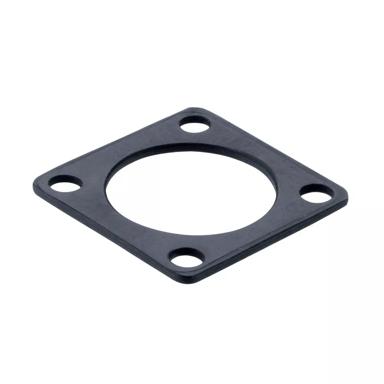

Other products to be used with this item: C90-25043-12S
Product Family: C90-3102R

Mating Products

Alternative products

C90-3101F12S-3P - 2 Pos. Circular Cable Conn. Plug contact

Closest alternative:

C90-3101F12S-3P

2 Pos. Circular Cable Conn. Plug contact
