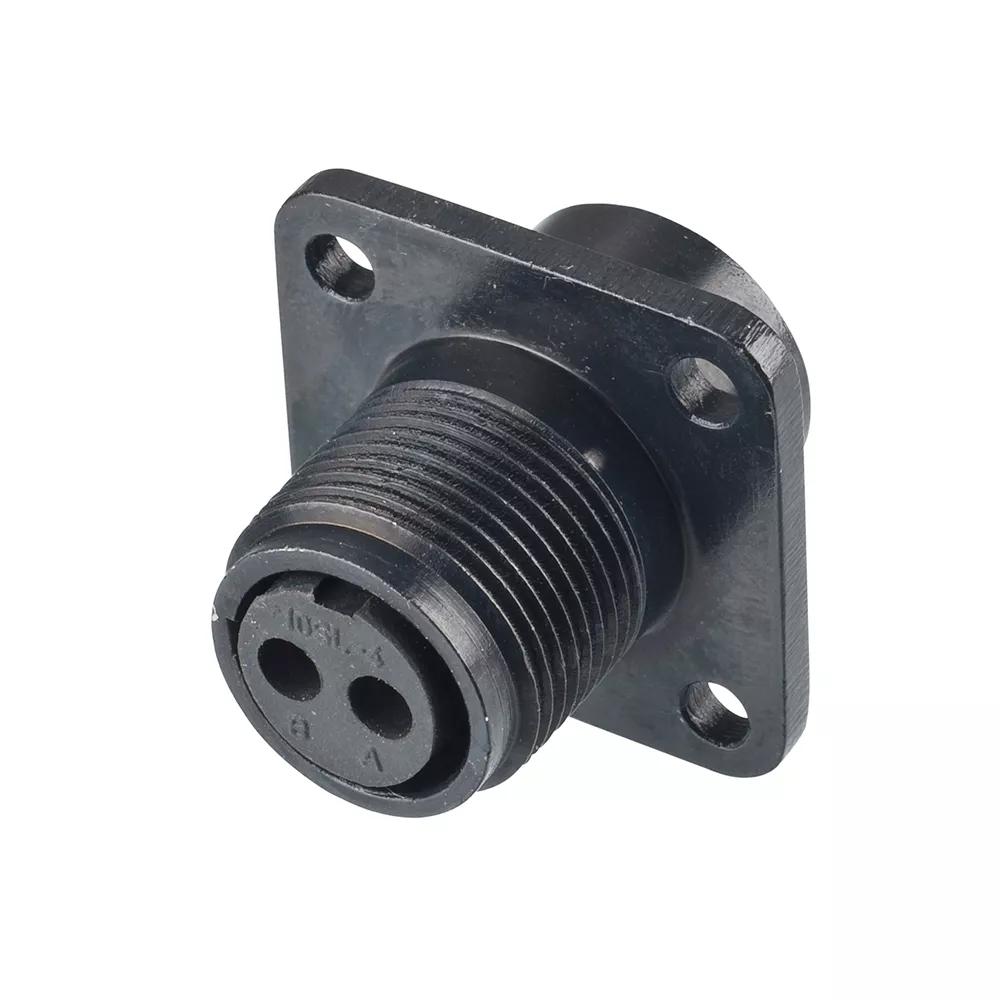

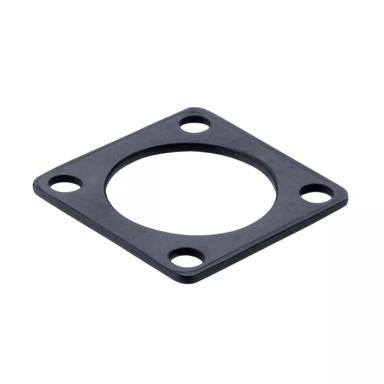

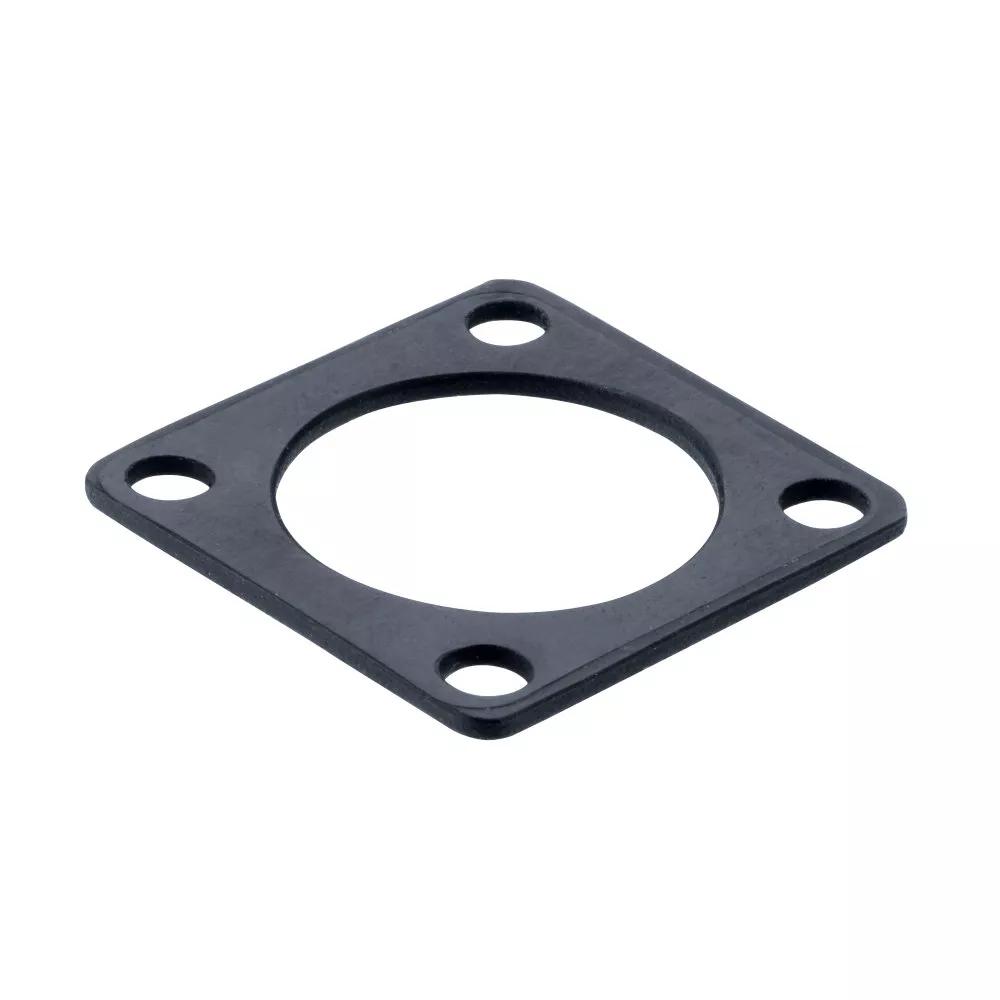

C90-3102R10SL-4S

2 Pos. Circular Panel Mount Conn. Socket contact

Circular Connector equivalent to MIL-DTL-5015 (MIL-C-5015)

  • RoHS Compliant version of MIL-DTL-5015 (MIL-C-5015) Circular Connectors, sealed to IP67.
  • Receptacle shell, 2 x Female contacts for 16-22AWG cable. Silver finish on contact area and solder termination.
  • For complete pin numbering or pin out information, see Component Specification C045XX.
Availability
Add to Favorites

Technical Details

Specification

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Solder)

Cable Conductor Size:

16-22AWG

Mating Pin Size:

Ø1.6mm

Current Rating:

13A per contact

Operating Temperature:

-55°C to +125°C

Polarising Features:

Yes

Number of Signal Contacts:

2

Materials

Finish / Plating on Termination:

Silver

Finish / Plating on Contact Surface:

Silver

Base Material of Contact:

Copper Alloy

Housing Material:

Aluminium Alloy

Housing Colour:

Black

Packaging Style:

Single Pack

Dimensions

Individual Part Weight:

14g

Overall Dimensions (L x W x D) in mm:

30.18 x 25.40 sq.

Thread Size:

5/8-24UNEF

Availability

779 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 383
Distributor Newark
Location USA
Quantity (Updated Daily) 157
Distributor Farnell
Location Europe
Quantity (Updated Daily) 147
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 92
