Active

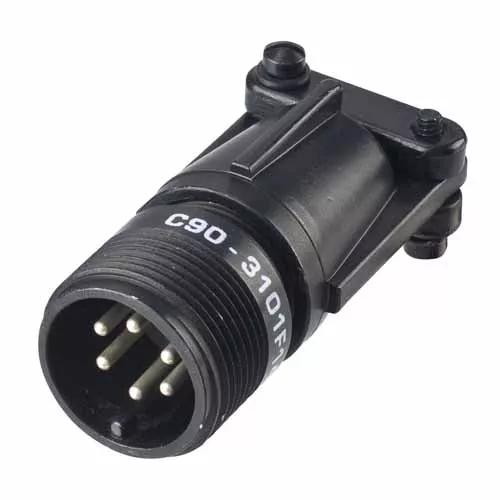

C90-3101F14S-6P

6 Pos. Circular Cable Conn. Plug contact

Circular Connector equivalent to MIL-DTL-5015 (MIL-C-5015)

RoHS Compliant version of MIL-DTL-5015 (MIL-C-5015) Circular Connectors, sealed to IP67.
Receptacle shell, 6 x Male contacts for 16-22AWG cable. Silver finish on contact area and solder termination.
For complete pin numbering or pin out information, see Component Specification C045XX.

Availability

C90-3101F14S-6P - 6 Pos. Circular Cable Conn. Plug contact

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Gender:

Male/Plug

Connector Orientation:

Straight

Connection Type:

Cable (Solder)

Cable Conductor Size:

16-22AWG

Mating Pin Size:

Ø1.6mm

Current Rating:

13A per contact

Operating Temperature:

-55°C to +125°C

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Signal Contacts:

Finish / Plating on Termination:

Silver

Finish / Plating on Contact Surface:

Silver

Base Material of Contact:

Copper Alloy

Housing Material:

Aluminium Alloy

Housing Colour:

Black

Packaging Style:

Single Pack

Individual Part Weight:

36.2g

Overall Dimensions (L x W x D) in mm:

54.10 x 22.76 sq.

Thread Size:

7/8-24UNEF

Availability

330 in stock

Limited availability or made-to-order

Distributor Location Quantity (Updated Daily)

Distributor Farnell

Location Europe

Quantity (Updated Daily) 173

Buy now

Distributor Mouser Electronics Inc

Location Global

Quantity (Updated Daily) 50

Buy now

Distributor TTI Inc

Location USA

Quantity (Updated Daily) 50

Buy now

Distributor Digi-Key

Location Global

Quantity (Updated Daily) 42

Buy now

Distributor Anglia

Location Europe

Quantity (Updated Daily) 15

Buy now

Questions & Answers Ask a Question

What is the recommended cable type for this connector?

The recommended cable size for connectors in the C90 range is 16-22AWG. We do not have any specific recommendations on cable type – this range is based on the same physical dimensions and specifications as MIL-DTL-5015, so any cable compatible with this standard will work for these connectors.

Downloads

PDF

Technical Drawing / Datasheet - C90-3101F.pdf

PDF

C045XX Component Specification - C90 Circular Connectors (MIL-DTL-5015 style connectors)

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.1) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Product Training Module - Overview of the C90 RoHS Circular Connector range, designed to MIL-DTL-5015

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

PDF

Product Training Module - Cable Products from Harwin

PDF

Catalog page - Circular Cable Connector, Straight Plug

PDF

Catalog page - Circular Connectors Specification, Pin Numbering

PDF

Catalog page - Circular Connectors Introduction
