C90-3101F14S-2P

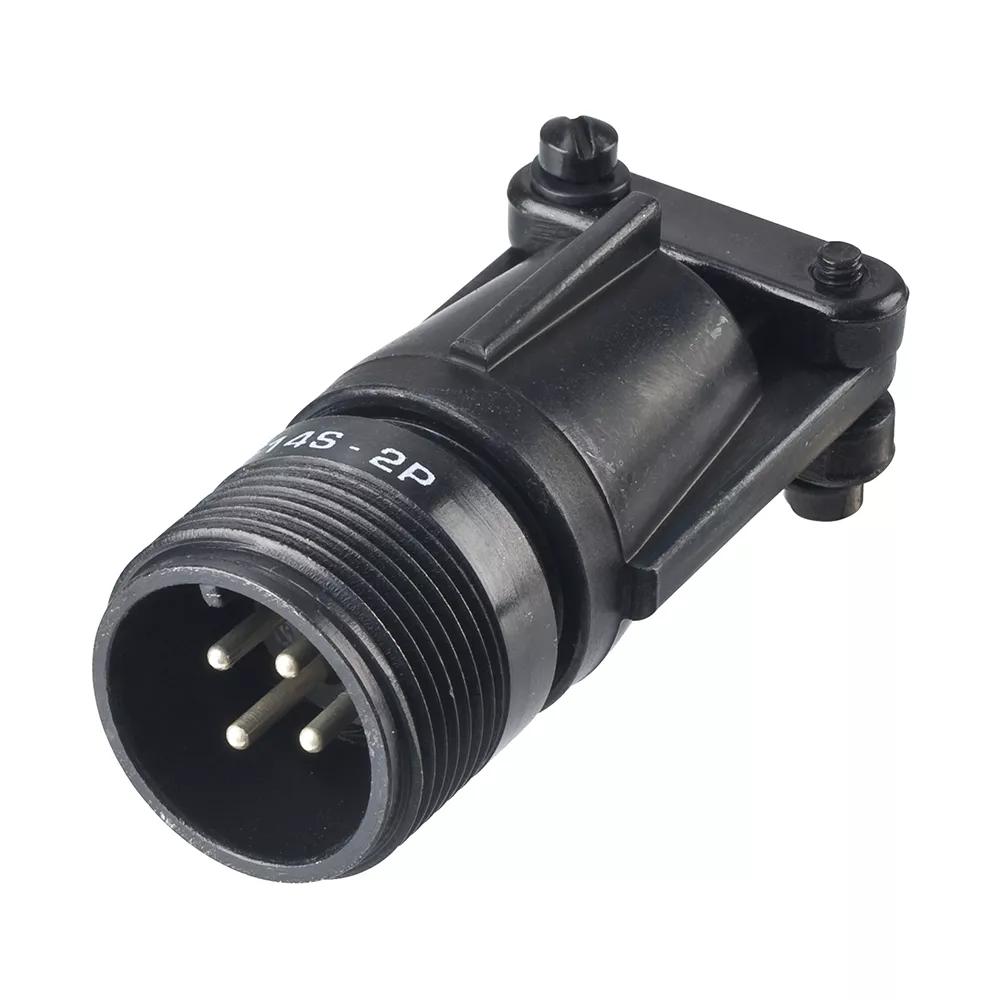

4 Pos. Circular Cable Conn. Plug contact

Circular Connector equivalent to MIL-DTL-5015 (MIL-C-5015)

  • RoHS Compliant version of MIL-DTL-5015 (MIL-C-5015) Circular Connectors, sealed to IP67.
  • Receptacle shell, 4 x Male contacts for 16-22AWG cable. Silver finish on contact area and solder termination.
  • For complete pin numbering or pin out information, see Component Specification C045XX.
Availability
Add to Favorites

Technical Details

Specification

Contact Gender:

Male/Plug

Connector Orientation:

Straight

Connection Type:

Cable (Solder)

Cable Conductor Size:

16-22AWG

Mating Pin Size:

Ø1.6mm

Current Rating:

13A per contact

Operating Temperature:

-55°C to +125°C

Polarising Features:

Yes

Number of Signal Contacts:

4

Materials

Finish / Plating on Termination:

Silver

Finish / Plating on Contact Surface:

Silver

Base Material of Contact:

Copper Alloy

Housing Material:

Aluminium Alloy

Housing Colour:

Black

Packaging Style:

Single Pack

Dimensions

Individual Part Weight:

33.79g

Overall Dimensions (L x W x D) in mm:

54.10 x 22.76 sq.

Thread Size:

7/8-24UNEF

Availability

268 in stock

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Farnell
Location Europe
Quantity (Updated Daily) 122
Distributor Newark
Location USA
Quantity (Updated Daily) 122
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 24

Questions & Answers Ask a Question

What is the recommended cable type for this connector?

The recommended cable size for connectors in the C90 range is 16-22AWG. We do not have any specific recommendations on cable type – this range is based on the same physical dimensions and specifications as MIL-DTL-5015, so any cable compatible with this standard will work for these connectors.

Are you able to supply the 3D CAD model for the C90-3101F14S-2P?

My apologies but we are currently unable to supply a CAD model for this product. The nearest part with a CAD model would be C90-3101F14S-6S, as it has the same outer shell. Please follow the link to access the product page, where you can download this model.
