C90-3101F10SL-3P

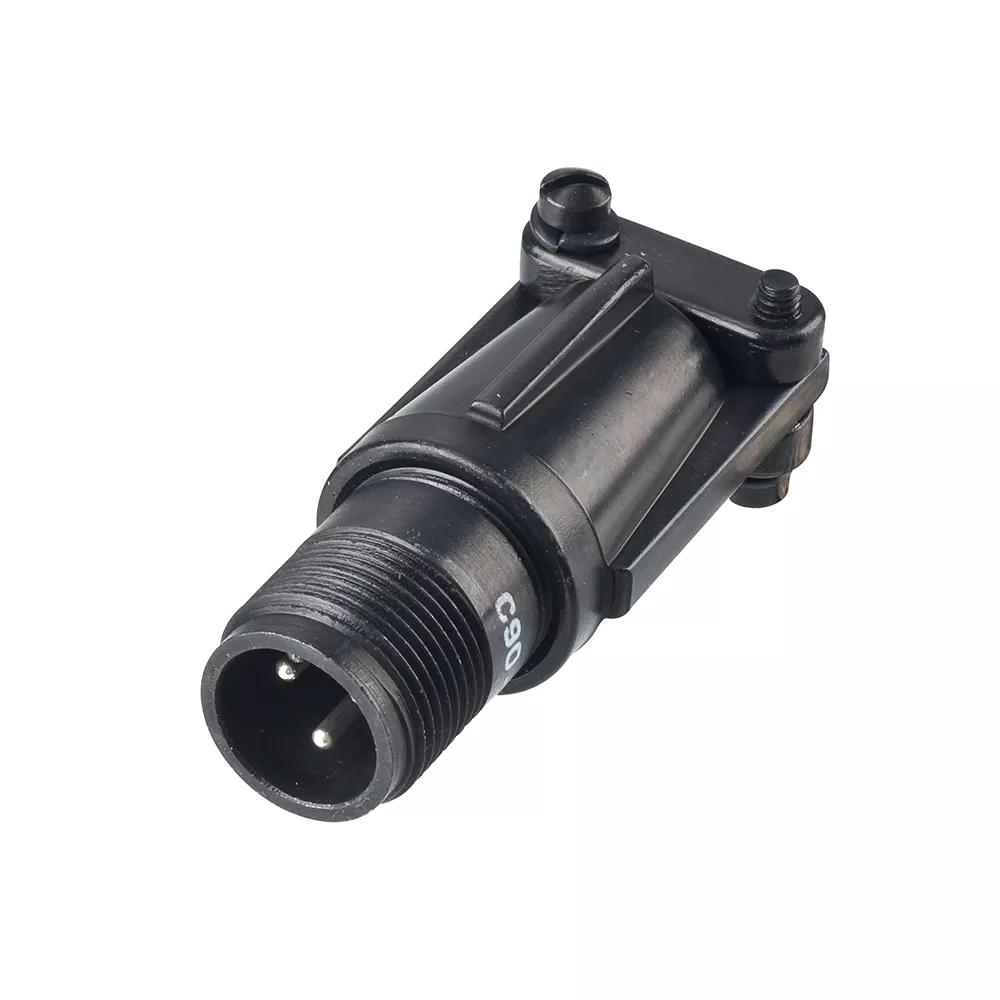

3 Pos. Circular Cable Conn. Plug contact

Circular Connector equivalent to MIL-DTL-5015 (MIL-C-5015)

RoHS Compliant version of MIL-DTL-5015 (MIL-C-5015) Circular Connectors, sealed to IP67.
Receptacle shell, 3 x Male contacts for 16-22AWG cable. Silver finish on contact area and solder termination.
For complete pin numbering or pin out information, see Component Specification C045XX.

Availability

C90-3101F10SL-3P - 3 Pos. Circular Cable Conn. Plug contact

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Gender:

Male/Plug

Connector Orientation:

Straight

Connection Type:

Cable (Solder)

Cable Conductor Size:

16-22AWG

Mating Pin Size:

Ø1.6mm

Current Rating:

13A per contact

Operating Temperature:

-55°C to +125°C

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Signal Contacts:

Finish / Plating on Termination:

Silver

Finish / Plating on Contact Surface:

Silver

Base Material of Contact:

Copper Alloy

Housing Material:

Aluminium Alloy

Housing Colour:

Black

Packaging Style:

Single Pack

Individual Part Weight:

27.34g

Overall Dimensions (L x W x D) in mm:

54.10 x 25.94 sq.

Thread Size:

5/8-24UNEF

Availability

147 in stock

Limited availability or made-to-order

Distributor Location Quantity (Updated Daily)

Distributor Mouser Electronics Inc

Location Global

Quantity (Updated Daily) 111

Buy now

Distributor Digi-Key

Location Global

Quantity (Updated Daily) 36

Buy now
