Active Product

C90-25043-14S

14S Circular Conn. End Cap & Chain

Circular Connector equivalent to MIL-DTL-5015 (MIL-C-5015)

Add to Favorites

375 in stock Check availability

3 similiar products View products

Samacsys account required

Download

No login is required

Product Description

Internal 7/8-24UNEF-2B thread size, use with 14S shell size.
Compatible with MIL-DTL-5015 (MIL-C-5015) Circular Connectors and RoHS compliant equivalent.
Fitted with 114.3mm stainless steel chain.

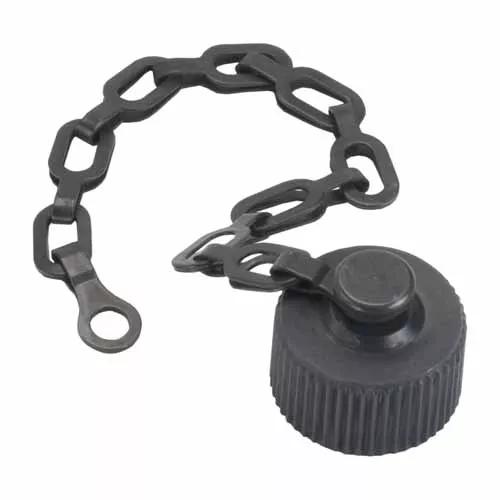

C90-25043-14S - 14S Circular Conn. End Cap & Chain

Representative image of product family

Samacsys account required

Download

No login is required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Mating Pin Size:

Ø1.6mm

Operating Temperature:

-55°C to +125°C

Base Material of Contact:

Aluminium Alloy

Housing Material:

Aluminium Alloy

Housing Colour:

Black

Packaging Style:

Single Pack

Individual Part Weight:

18.82g

Overall Dimensions (L x W x D) in mm:

11.91 x Ø28.57, 114.30 chain

Thread Size:

7/8-24UNEF

Frequently Asked Questions Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

RoHS Compliant (2015/863/EU) with no Exemption required

PDF Download
