Home > B5743-105-M-T-1
Active Product

B5743-105-M-T-1

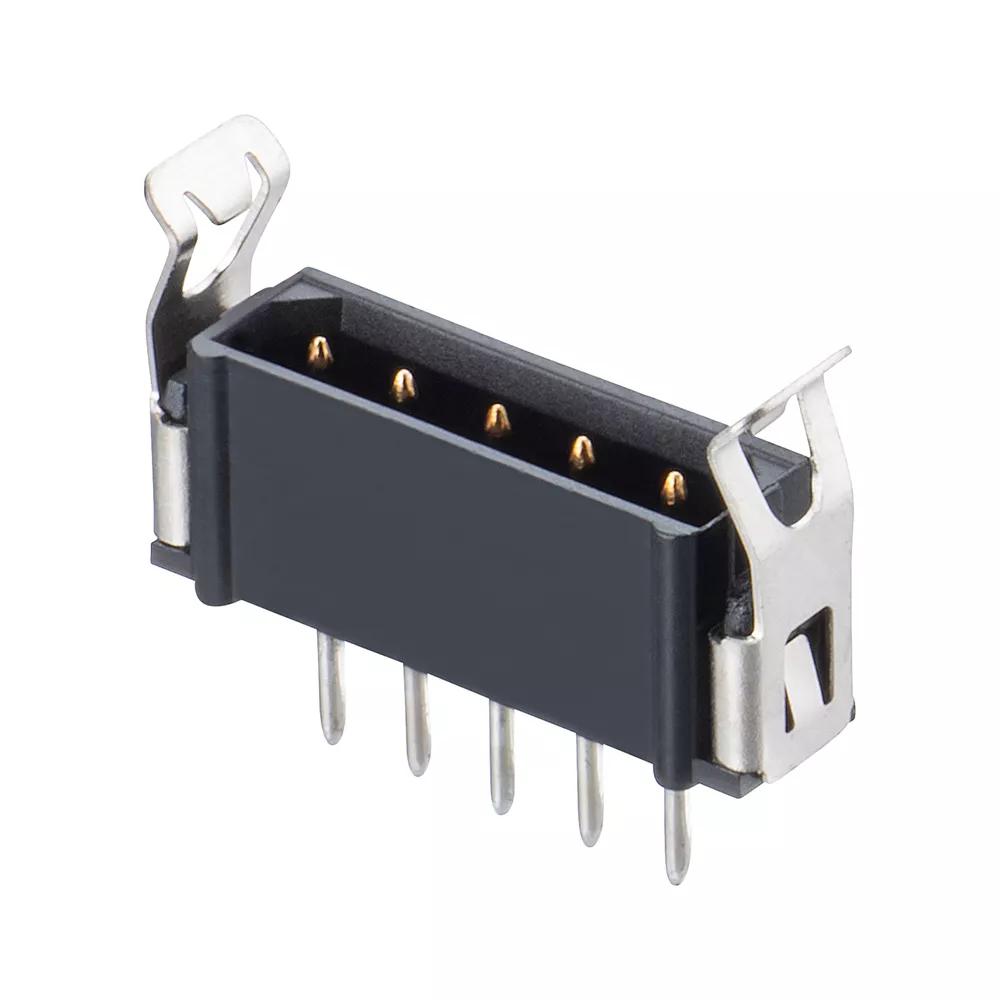

5 Pos. Male SIL Vertical Throughboard Conn. Latches (BS Release)

2.00mm Pitch British Standard Datamate L-Tek

Add to Favorites

Made to order

4 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • Single Row, 5 x 3mm PC Tail contacts – Gold finish on contact area, Tin/Lead finish on termination. British Standard Datamate – Fully tested and 100% inspected to BS9525 F0033.
  • Locking latches – tooling required to separate mated connectors.
  • For complete pin numbering or pin out information, see Component Specification C005XX.

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.5mm

Current Rating:

3.3A max individual contact, 3A max simultaneous (25°C)

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 235°C for 5 seconds

Style of Latches:

Locking Latch

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

1

Number of Signal Contacts:

5

Materials

Finish / Plating on Termination:

Tin/Lead

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PBT

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

0.412g

Overall Dimensions (L x W x D) in mm:

14.10 x 3.85 x 11.35

Height of Connector above PCB:

8.35mm

Length of Throughboard Tail:

3.00mm

Frequently Asked Questions Ask a Question

What is the difference between this BS release connector and the standard Datamate connector?

Commercial Datamate connectors and Datamate released to BS9525-F0033 are manufactured on the same line. But product released to BS9525-F0033 is 100% inspected, product from every batch is tested, and yearly tests are also carried out, to meet the requirements of BS9525-F0033. These connectors are generally specified only in safety-critical applications, as it carries a price premium. You can find more details on our Support article.

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

Not RoHS Compliant (2015/863/EU)

PDF Download

INSTRUCTION SHEETS

OTHER DOWNLOADS
