New, versatile 2mm test sockets from Harwin are low profile with excellent electrical performance
Written by
Wendy Jane
Preston
Immediately available from stock
Harwin, the leading hi-rel connector and SMT board hardware manufacturer, has announced the launch of a new range of PCB-mounted, dual-entry test sockets that accept a 2mm pin. These low profile devices measure only 5.16mm max above the board when mounted, and feature gold-plated contacts to ensure excellent electrical performance.

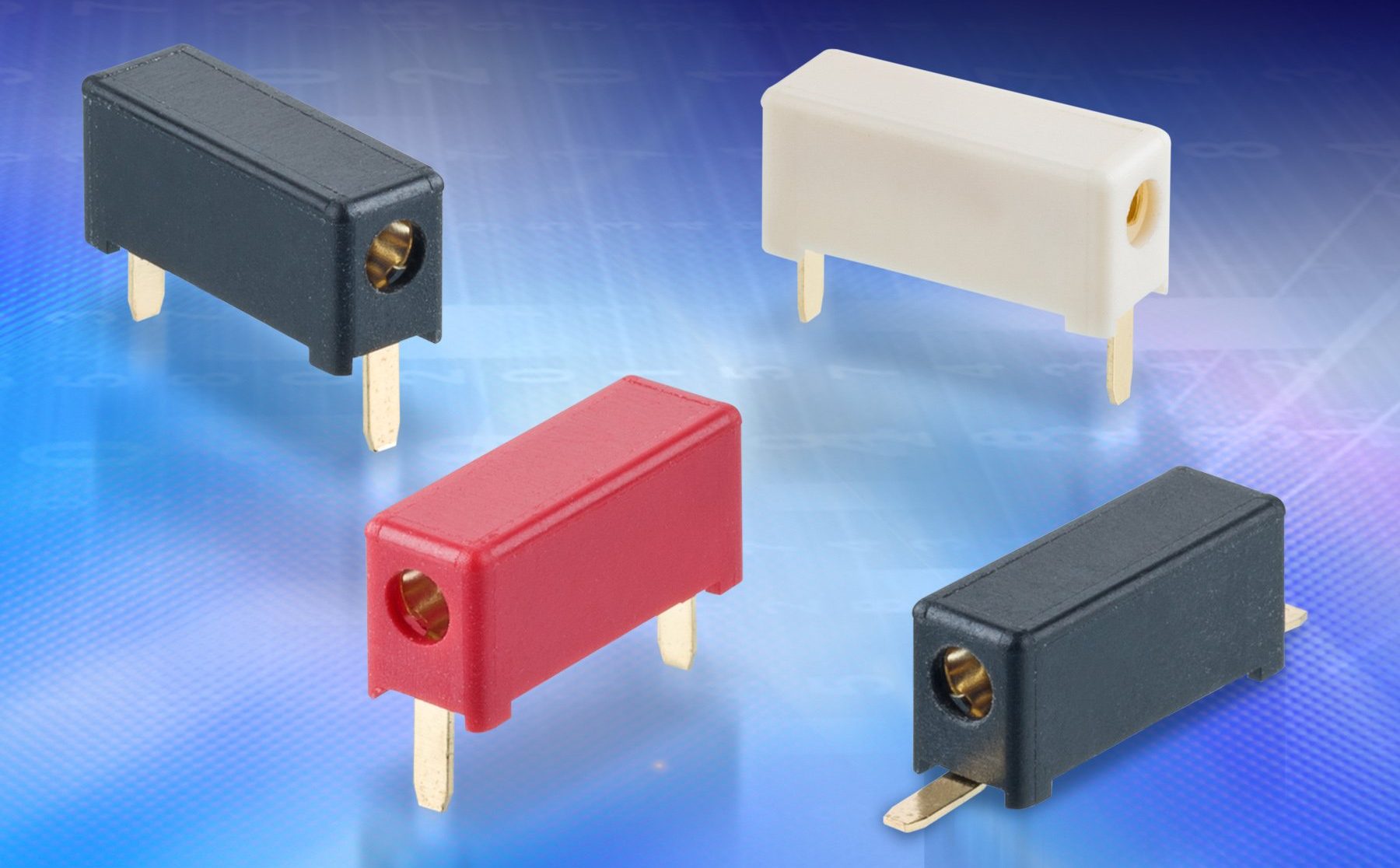

The dual entry sockets facilitate easy access. Devices feature a flat upper surface to enable automated pick and place assembly. Both SMT and PTH devices are available: surface mount versions are supplied on tape and reel packaging for automated production or loose for prototyping; through hole styles are available in three different colours to facilitate colour-coding of functions. Devices are rated at 5A, 1500V. They have a contact resistance of 5mΩ (max), and an operating temperature of -40C to +105°C.
Devices are immediately available from stock on low MOQs, to enable prototyping and pre-production design.
Key applications include high current test points and wire-to-board connections used in a wide range of market segments such as power supplies, instrumentation, traffic signaling, energy and healthcare.
