Harwin Expands Datamate Cable Assembly Portfolio

New off-the-shelf solutions are available direct from stock with no lead times.

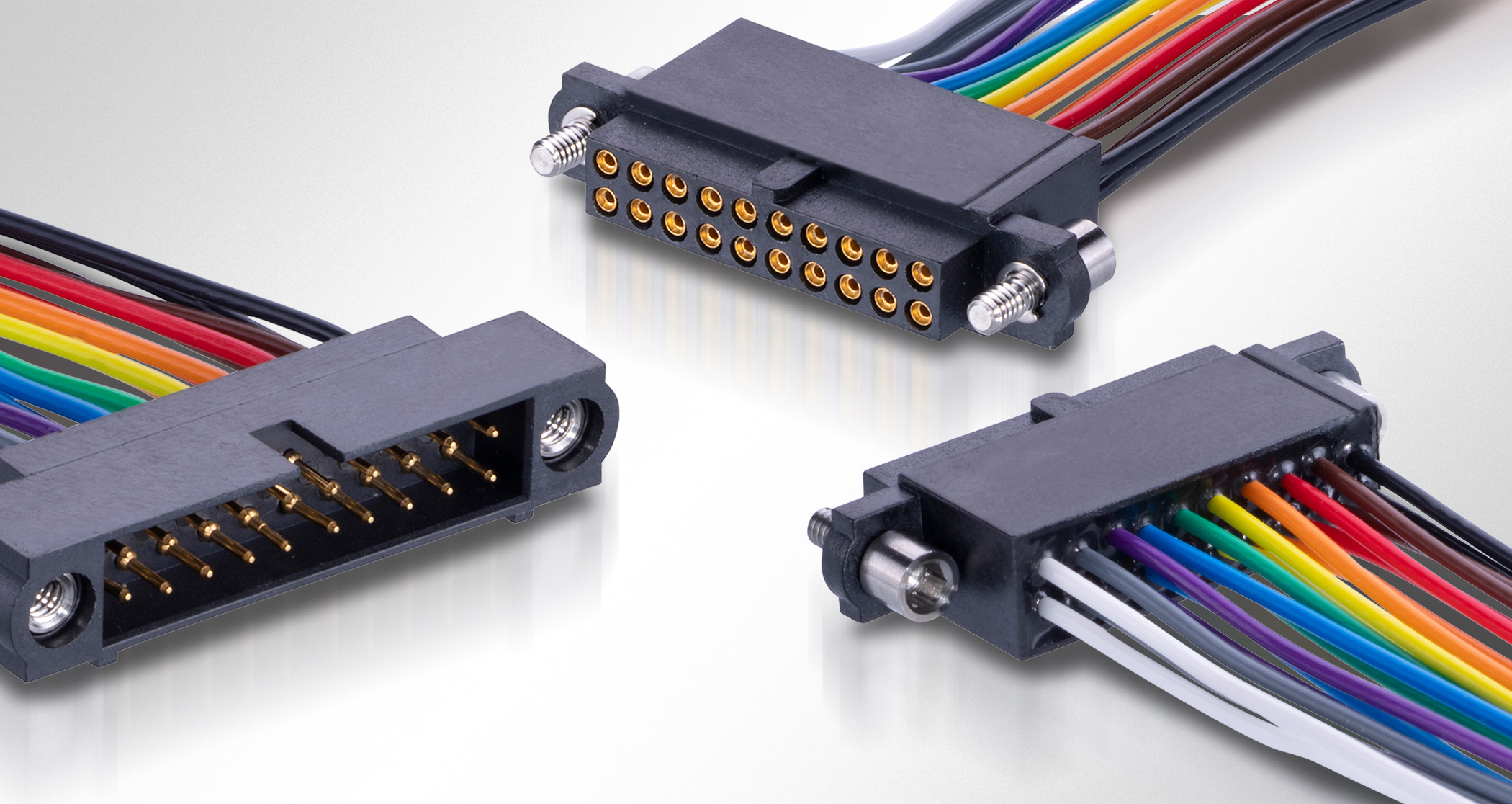

Harwin has strengthened its connector cable assembly offering, with additional variations for its 2.00mm pitch Datamate high-reliability (Hi-Rel) connector assemblies enabling greater customer convenience.

Immediately available from stock via Harwin’s supply chain partners, there are 61 new variants added to its cable assembly portfolio. The additional cable assemblies cover male and female connections, with numerous contact count and cable length options available. These come in both single-ended and double-ended configurations and 150mm, 300mm and 450mm cable lengths can be supplied. Contact options also include the high performance T-Contact, which is capable of up to 8.5A. For assemblies with extended rear wall housings, epoxy resin backpotting is included to provide added strain relief. All connectors have stainless steel jackscrews incorporated for extra secure mating and vibration resistance.

In line with all products in the Datamate series, these cable assemblies have the mechanical robustness required for Hi-Rel deployment. As well as supporting 500 mating cycle lifespans, they exhibit superior resilience to both shock (100G within a 6ms period) and vibrational forces (10G for 2 hours on each axis). They also offer a broad working temperature range of -55°C to +125°C.

“An increasing proportion of our customers need access to cable assemblies, but taking on such work themselves can prove challenging. Heavy investment in tooling and training can be difficult to justify for small volume production runs or prototyping activities, and there can be deadline pressures too,” states Ryan Smart, New Product Manager at Harwin. “By offering a broad array of different cable assemblies as part of our Datamate product line, we can help customers avoid all these complications. They can choose the option that best fits their needs, and source it from stock without any lead times to worry about. Customers also have the assurance that these assemblies have been constructed and thoroughly tested by a highly experienced team of qualified engineers.”



Download the Datamate Cables Product Summary

M80 Ready-Made Cable Assemblies

Part Number

Cable Type

No. of Cables

Fixings

M80-FB10468F2-0150L

Single-end T-Contact female

4 x 150mm 22 AWG

Hex socket jackscrews

M80-FB10468FC-0150L

Single-end T-Contact female

4 x 150mm 22 AWG

101Lok fixings

M80-FB10668F2-0150L

Single-end T-Contact female

6 x 150mm 22 AWG

Hex socket jackscrews

M80-FB10668FC-0300L

Single-end T-Contact female

6 x 300mm 22 AWG

101Lok fixings

M80-FB10868F2-0150L

Single-end T-Contact female

8 x 150mm 22 AWG

Hex socket jackscrews

M80-FB10868FC-0150L

Single-end T-Contact female

8 x 150mm 22 AWG

101Lok fixings

M80-FB11068F2-0150L

Single-end T-Contact female

10 x 150mm 22 AWG

Hex socket jackscrews

M80-FB11068FC-0150L

Single-end T-Contact female

10 x 150mm 22 AWG

101Lok fixings

M80-FB11668F2-0150L

Single-end T-Contact female

16 x 150mm 22 AWG

Hex socket jackscrews

M80-FB11668FC-0300L

Single-end T-Contact female

16 x 300mm 22 AWG

101Lok fixings

M80-FB12068F2-0150L

Single-end T-Contact female

20 x 150mm 22 AWG

Hex socket jackscrews

M80-FB12068FC-0150L

Single-end T-Contact female

20 x 150mm 22 AWG

101Lok fixings

M80-FC10668FC-0150L

Single-end J-Tek female

6 x 150mm 22 AWG

101Lok fixings

M80-FC11068FC-0150L

Single-end J-Tek female

10 x 150mm 22 AWG

101Lok fixings

M80-FC12068FC-0150L

Single-end J-Tek female

20 x 150mm 22 AWG

101Lok fixings

M80-FC12668FC-0150L

Single-end J-Tek female

26 x 150mm 22 AWG

101Lok fixings

M80-FC30605F2-0300F2

Double-end J-Tek female

6 x 300mm 26 AWG

101Lok fixings

M80-FC30668F2-0150L

Single-end J-Tek female

6 x 150mm 26 AWG

101Lok fixings

M80-FC31005F2-0300F2

Double-end J-Tek female

10 x 300mm 26 AWG

101Lok fixings

M80-FC31068F2-0150L

Single-end J-Tek female

10 x 150mm 26 AWG

101Lok fixings

M80-FC31605F2-0300F2

Double-end J-Tek female

16 x 300mm 26 AWG

101Lok fixings

M80-FC31668F2-0150L

Single-end J-Tek female

16 x 150mm 26 AWG

101Lok fixings

M80-FC32605F2-0300F2

Double-end J-Tek female

26 x 300mm 26 AWG

101Lok fixings

M80-FC32668F2-0150L

Single-end J-Tek female

26 x 150mm 26 AWG

101Lok fixings

M80-FC35005F2-0300F2

Double-end J-Tek female

50 x 300mm 26 AWG

101Lok fixings

M80-FC35068F2-0150L

Single-end J-Tek female

50 x 150mm 26 AWG

101Lok fixings

M80-FE20668F2-0450L

Single-end Ext. Wall (5mm) female

6 x 450mm 24 AWG

Hex socket jackscrews

M80-FE21068F2-0450L

Single-end Ext. Wall (5mm) female

10 x 450mm 24 AWG

Hex socket jackscrews

M80-FE21268F2-0450L

Single-end Ext. Wall (5mm) female

12 x 450mm 24 AWG

Hex socket jackscrews

M80-FE21468F2-0450L

Single-end Ext. Wall (5mm) female

14 x 450mm 24 AWG

Hex socket jackscrews

M80-FE22068F2-0450L

Single-end Ext. Wall (5mm) female

20 x 450mm 24 AWG

Hex socket jackscrews

M80-FE22668F2-0450L

Single-end Ext. Wall (5mm) female

26 x 450mm 24 AWG

Hex socket jackscrews

M80-FE23468F2-0450L

Single-end Ext. Wall (5mm) female

34 x 450mm 24 AWG

Hex socket jackscrews

M80-FE24268F2-0450L

Single-end Ext. Wall (5mm) female

42 x 450mm 24 AWG

Hex socket jackscrews

M80-FE25068F2-0450L

Single-end Ext. Wall (5mm) female

50 x 450mm 24 AWG

Hex socket jackscrews

M80-FF20668F2-0450L

Single-end Ext. Wall (1mm) female

6 x 450mm 24 AWG

Hex socket jackscrews

M80-FF21068F2-0450L

Single-end Ext. Wall (1mm) female

10 x 450mm 24 AWG

Hex socket jackscrews

M80-FF21268F2-0450L

Single-end Ext. Wall (1mm) female

12 x 450mm 24 AWG

Hex socket jackscrews

M80-FF22068F2-0450L

Single-end Ext. Wall (1mm) female

20 x 450mm 24 AWG

Hex socket jackscrews

M80-MC20468M1-0450L

Single-end J-Tek male

4 x 450mm 24 AWG

Internal jackscrew

M80-MC20468MA-0450L

Single-end J-Tek male

4 x 450mm 24 AWG

Reverse fix jackscrew

M80-MC20668M1-0450L

Single-end J-Tek male

6 x 450mm 24 AWG

Internal jackscrew

M80-MC20668MA-0450L

Single-end J-Tek male

6 x 450mm 24 AWG

Reverse fix jackscrew

M80-MC21068M1-0450L

Single-end J-Tek male

10 x 450mm 24 AWG

Internal jackscrew

M80-MC21068MA-0450L

Single-end J-Tek male

10 x 450mm 24 AWG

Reverse fix jackscrew

M80-MC21468M1-0450L

Single-end J-Tek male

14 x 450mm 24 AWG

Internal jackscrew

M80-MC21468MA-0450L

Single-end J-Tek male

14 x 450mm 24 AWG

Reverse fix jackscrew

M80-MC22068M1-0450L

Single-end J-Tek male

20 x 450mm 24 AWG

Internal jackscrew

M80-MC22068MA-0450L

Single-end J-Tek male

20 x 450mm 24 AWG

Reverse fix jackscrew

M80-MC23468M1-0450L

Single-end J-Tek male

34 x 450mm 34 AWG

Internal jackscrew

M80-MC23468MA-0450L

Single-end J-Tek male

34 x 450mm 34 AWG

Reverse fix jackscrew

M80-MC24268M1-0450L

Single-end J-Tek male

42 x 450mm 24 AWG

Internal jackscrew

M80-MC24268MA-0450L

Single-end J-Tek male

42 x 450mm 24 AWG

Reverse fix jackscrew

M80-MC25068M1-0450L

Single-end J-Tek male

50 x 450mm 24 AWG

Internal jackscrew

M80-MC25068MA-0450L

Single-end J-Tek male

50 x 450mm 24 AWG

Reverse fix jackscrew
