Home > D3080-46
Active Product

D3080-46

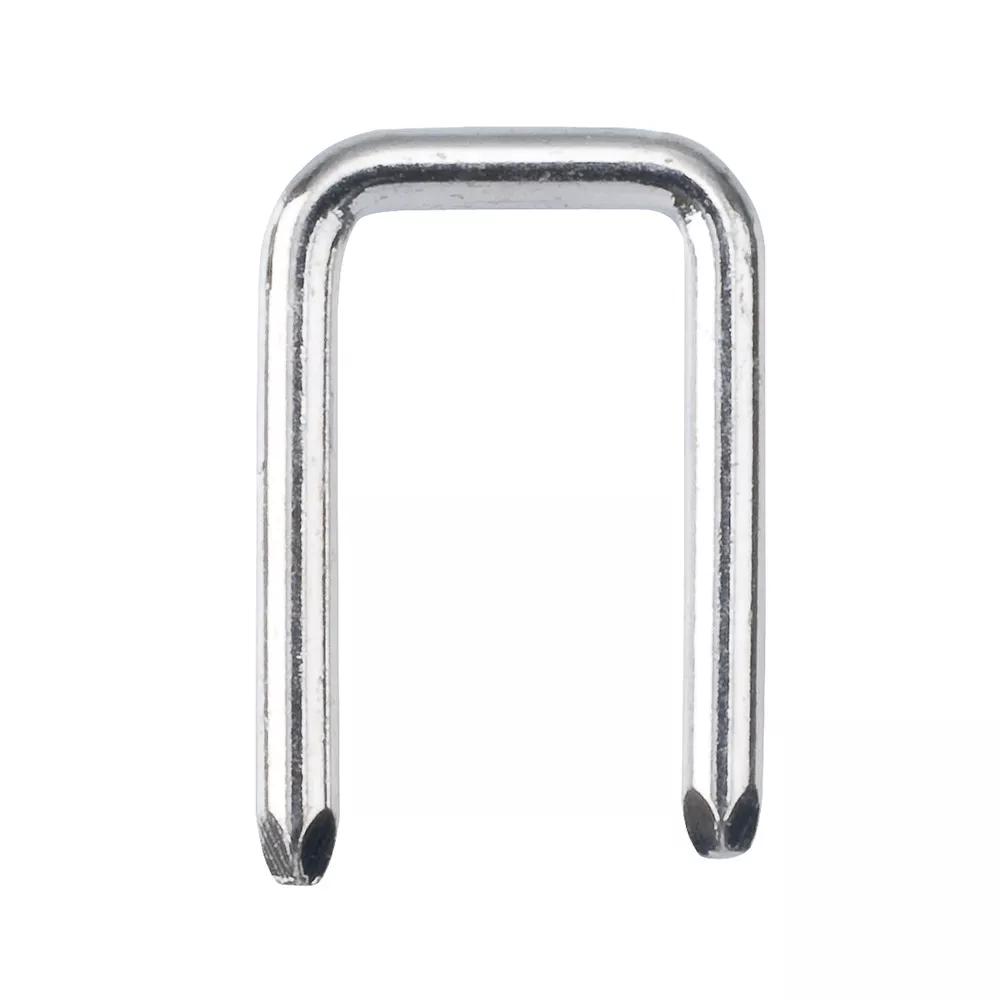

Uninsulated 5.08mm Shorting Link Throughboard

Hardware - PCB Shorting Link, Fixed Jumper Link

Add to Favorites

Loading…   Check availability

9 similar products View products

Traceparts account required

Product Description

  • Ø1mm Male Uninsulated shorting plug or link, 5.08mm (0.2″) pitch between legs.
  • Bright Tin finish.

Technical Details

Specification

Contact Pitch:

5.08mm (0.2")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Current Rating:

10A

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.149g

Overall Dimensions (L x W x D) in mm:

6.08 x 1.00 x 9.00

Height of Connector above PCB:

1.00mm

Length of Throughboard Tail:

8.00mm

Frequently Asked Questions Ask a Question

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.

Was this answer useful?

What is the maximum contact resistance of this shorting plug?

We have not specifically tested the contact resistance of this product, but it is one continuous piece of metal so it will be very low. We would recommend that you do testing with it mated to whatever connection you intend to use, so that you can confirm the contact resistance obtained in use. The contact resistance of the connection point will be higher than the contact resistance within the shorting plug.

Was this answer useful?

Could you provide the packing information to me – are they Reel, Tray or others?

These items are packed in bulk – that is, loose in bags. There is no reel or tray option available, sorry. You can find the Packing style on this page in the Technical Details section, under Materials.

Was this answer useful?

Which PCB socket will mate with this shorting link?

We have a choice of sockets suitable for mating with the 1mm diameter pins on the shorting link. Here is the Catalog section for PCB sockets – check for ones that are compatible with 1mm diameter. Please make sure you also check the widest diameter so that the sockets will fit next to each other on the same pitch as the shorting link.

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF Download

INSTRUCTION SHEETS
